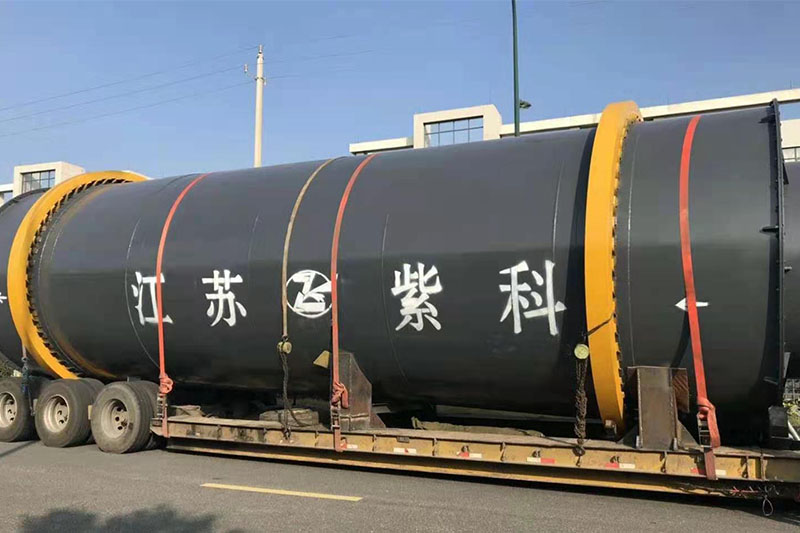

Yellow sand dryer is a device used for drying yellow sand or other granular materials, commonly referred to as a "sand dryer" or "yellow sand dryer". It is widely used in various industries, such as building materials, metallurgy, chemical industry, coal, medicine, and food.

Working principle and structure

The working principle of the yellow sand dryer mainly utilizes heat conduction and convective heat transfer. Yellow sand has good thermal conductivity and heat capacity, which can transfer heat to the surface of the material in a short period of time, allowing it to quickly evaporate moisture. At the same time, the gaps between the particles of yellow sand form convective channels, promoting air circulation and accelerating the evaporation and discharge of moisture.

Its main structure includes a drying chamber, a heat source, a yellow sand tank, a conveying device, and a control system

Drying room: It is the main space for drying items, usually packaged with metal plates and insulation materials to ensure heat sealing and insulation.

Heat source: A device that provides heat, such as an electric heater or a gas hot air stove.

Yellow sand trough: a container for storing yellow sand, which can be adjusted according to the size and shape of the material.

Conveyor device: It transports materials from the feeding port to the drying room, usually using a belt conveyor or screw conveyor.

Control system: controls and monitors the entire equipment, including temperature control, electrical protection, and automation control.

Working process

The working process of the yellow sand dryer is mainly divided into four stages: loading, drying, unloading, and cleaning:

Loading: Place the material into the feeding port and transport it to the drying room through the conveying device.

Drying: Start the heat source to heat the yellow sand to a certain temperature, and transfer the heat to the surface of the material through convection and conduction, causing it to evaporate moisture.

Unloading: When the material reaches the predetermined dryness level, stop the heat source, wait for the yellow sand to cool naturally, and then remove the material from the unloading port through the conveying device.

Cleaning: Clean and maintain the entire equipment to ensure its effectiveness and safety for future use.
